MT100V-003Z03R02-25-L075 TAS
MT100V-003Z03R02-25-L075 TAS - Görsel 2

MT100V-003Z03R02-25-L075 TAS

End mill 2-tooth semi-ball with extended cutting part

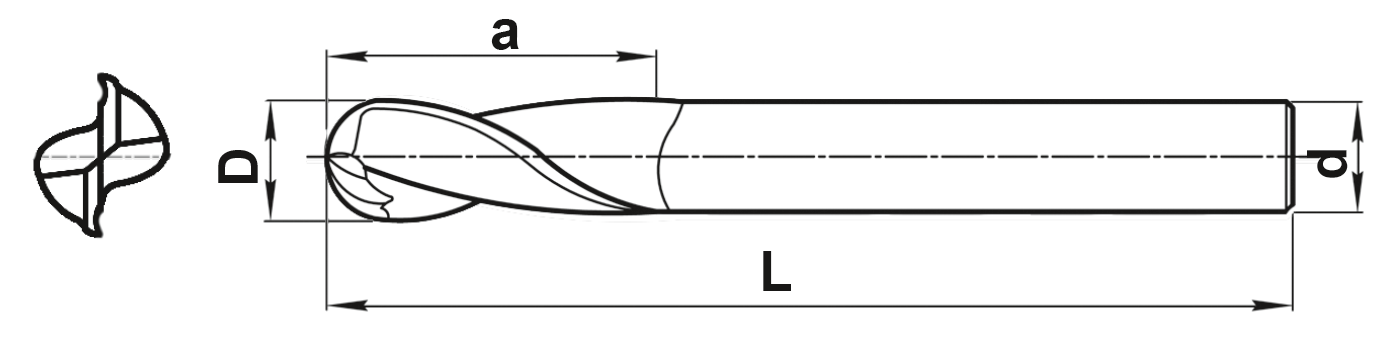

Main dimensions, mm:
DaLd
325753

It is possible to manufacture a milling cutter with a cylindrical shank with Weldon type flats (DIN 1835B). The order code for a milling cutter with a Weldon shank is C..LB2…W, for example: C-SLB20630W

Illustrations are not an exact representation of the product, please see the description and specifications of the tool

Kategoriler:

Açıklama

Characteristics
SeriesMT100V
Plan angle, °0
Nominal diameter, mm3
Max. cutting depth, mm25
Number of teeth, pcs2
Shape of the fastening partZ – cylindrical shank DIN 1835 A
Size of the fastening part3
Cutting directionR – right
End face design of the toolr – radius at the top
Radius at the top, mm1.5
Groove pitch angle, °30
Overall length, mm75
CoatingTAS – TiAlN coating
Executionlong
